5 Ton Steel Decoiler
Remote service;
Expatriate engineer service;
Life-long technical service;

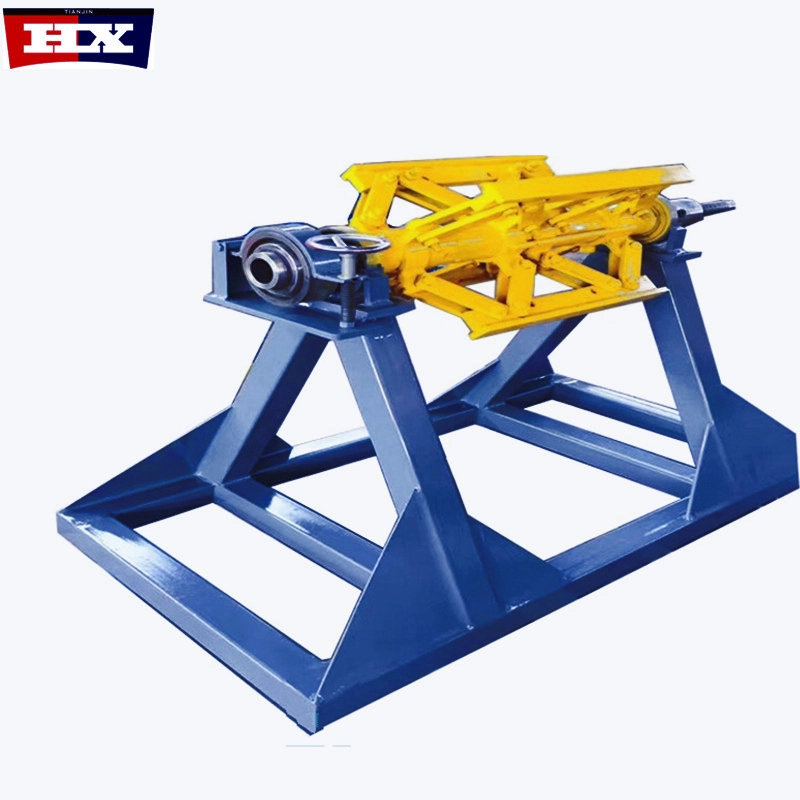

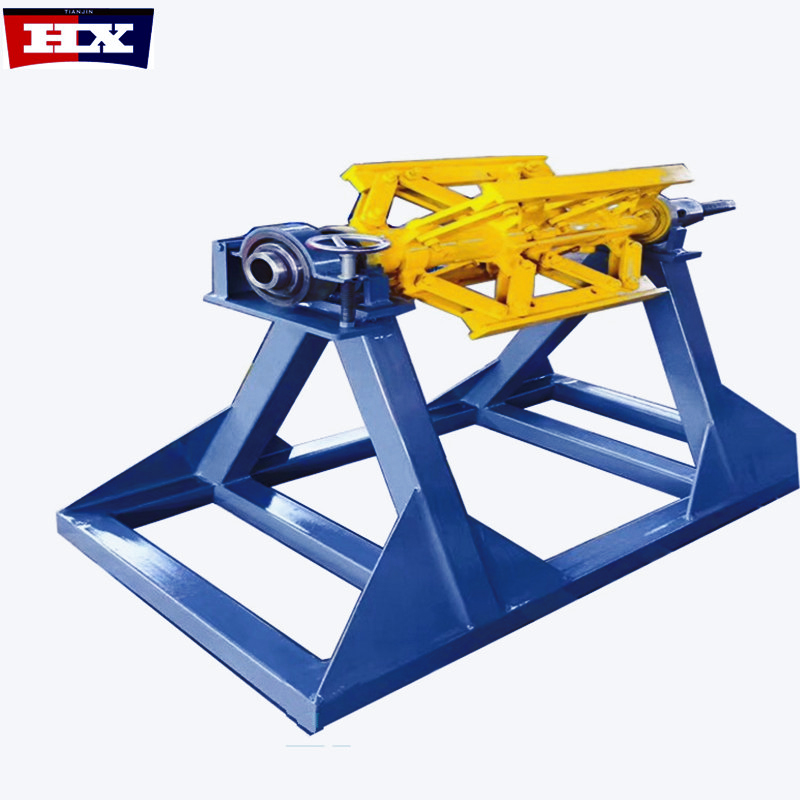

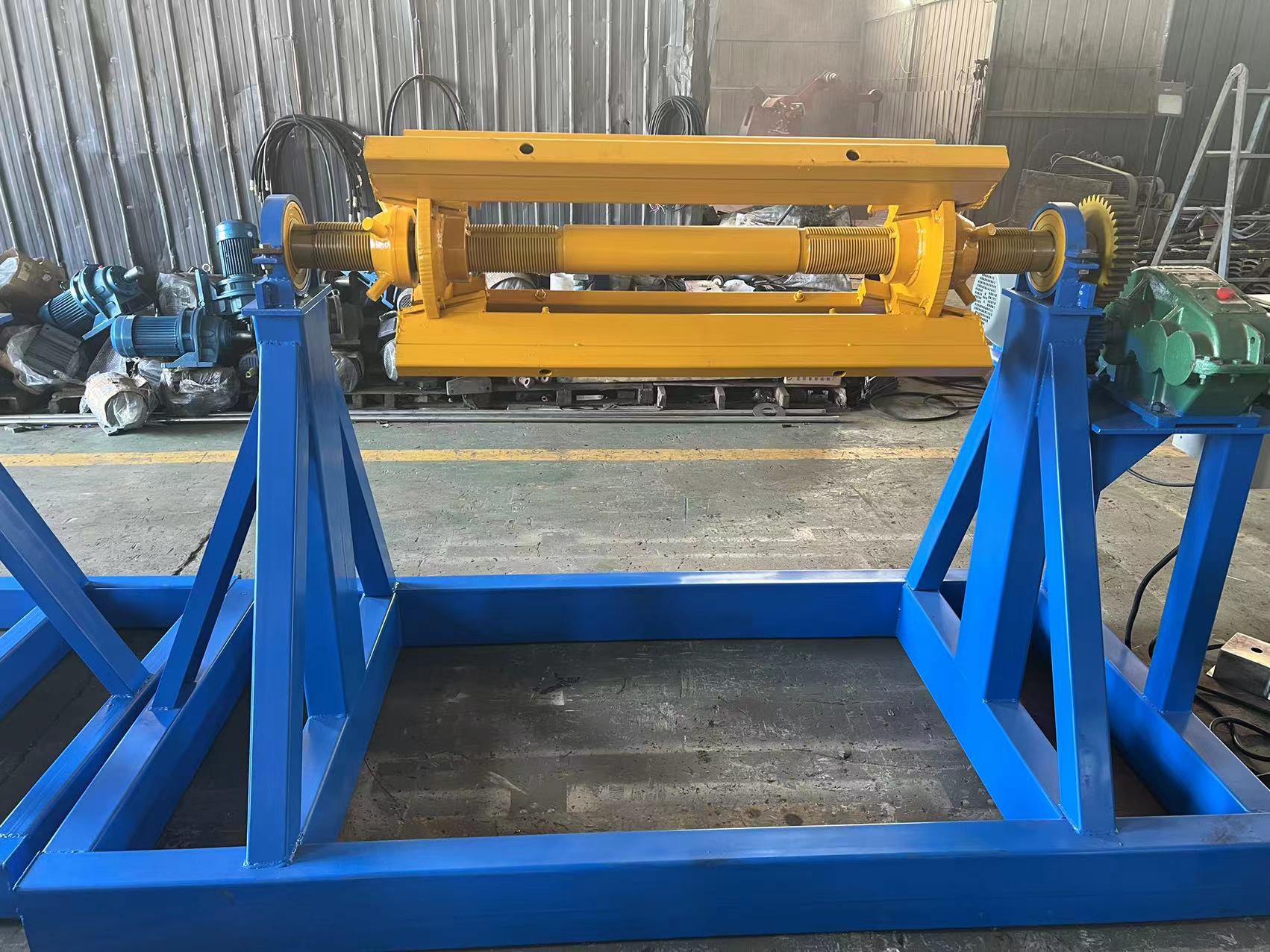

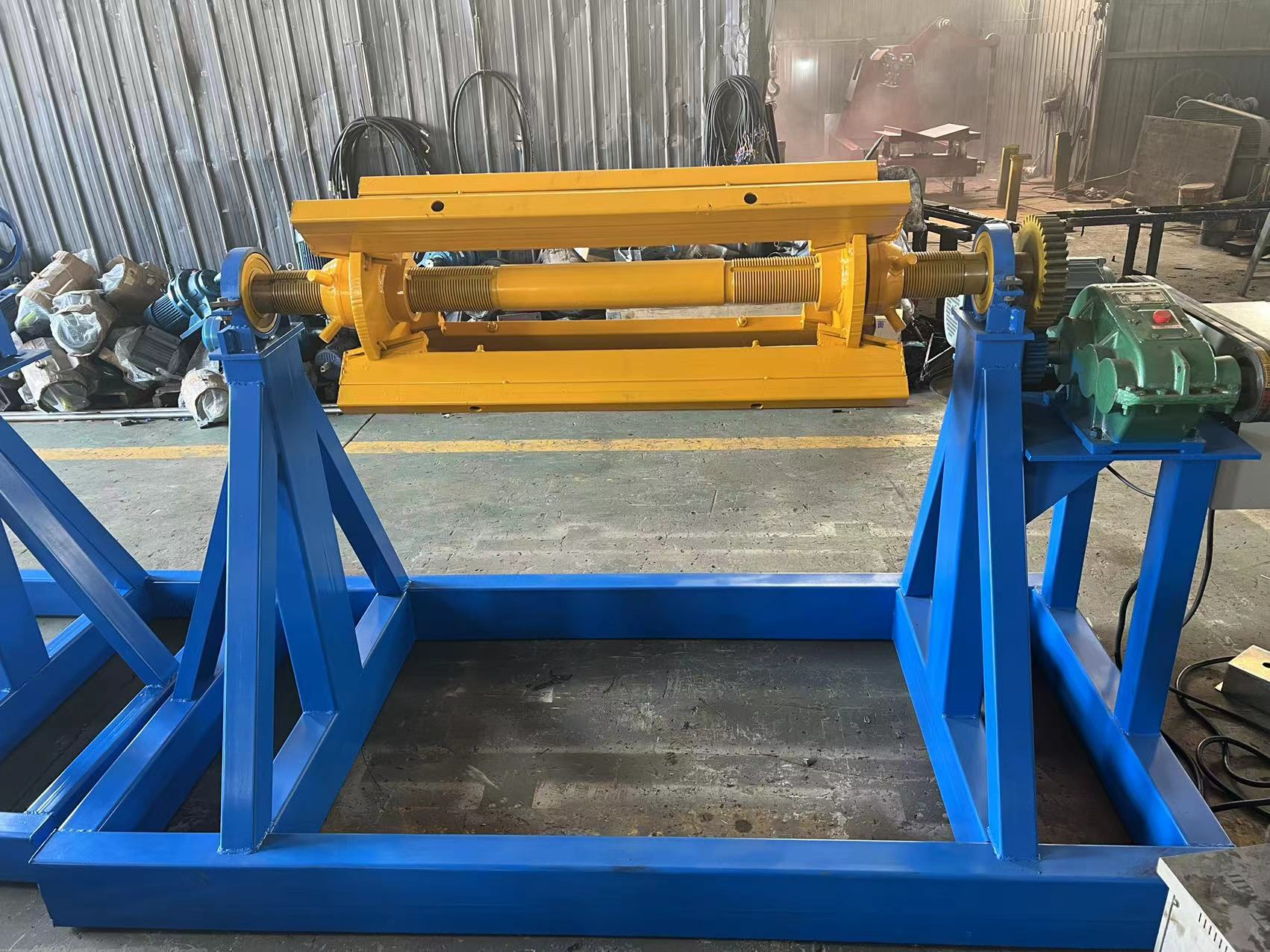

5 Ton Manual Steel Decoiler
Our 5 Ton Manual Steel Decoiler is a cost-effective and durable coil handling solution designed for feeding metal coils into roll forming machines, slitting lines, and cut-to-length lines. It is suitable for uncoiling galvanized steel, PPGI, aluminum, and stainless steel coils with inner expansion by manual control.
Ideal for light to medium-duty production lines, this decoiler ensures stable coil support and easy manual operation without requiring hydraulic or motorized systems.
Type: Manual Decoiler (non-motorized)
Loading Capacity: 5 Tons
Coil Width: Max. 1250 mm (customizable)
Inner Diameter: 450 – 530 mm (adjustable)
Outer Diameter: Max. 1500 mm
Expansion Method: Manual handwheel expansion
Brake System: Manual tension brake (optional)
Base Frame: Heavy-duty welded steel frame
Color & Logo: Customizable
HAIXING
