Roll Forming Machine - - HAIXING-4
Product details of the roll forming machine
Product Information
The application of advanced equipment gives HAIXING roll forming machine a fine finished. With years of manufacturing experience, we guarantee an unparalleled level of quality of the product. roll forming machine is a highly marketable commodity with high quality.
Product description

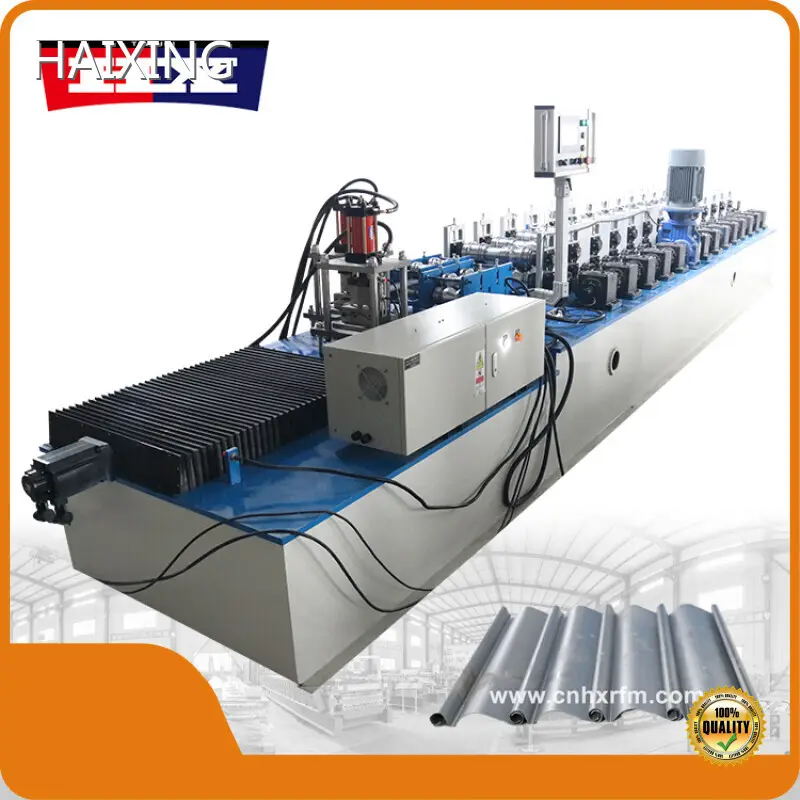

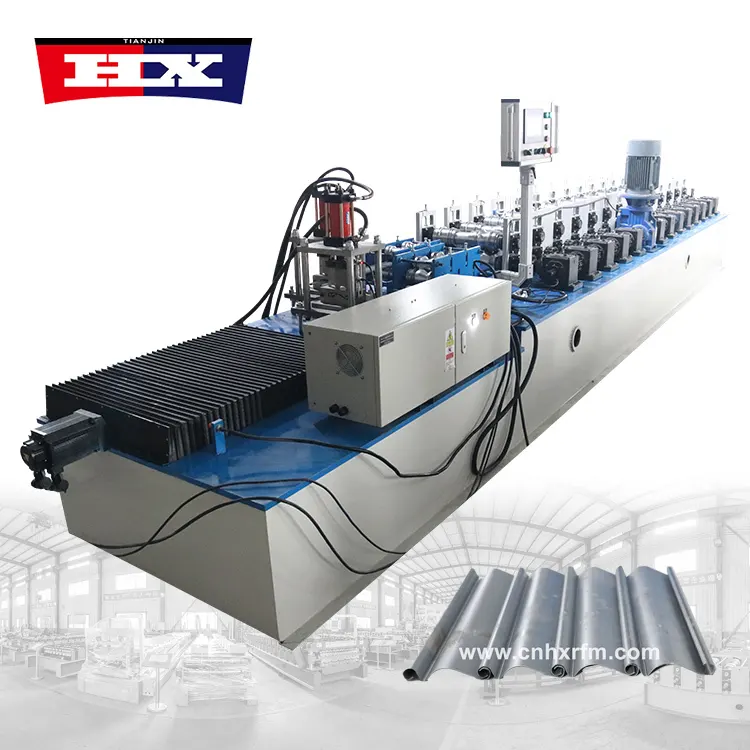

| Double-head shutter door machine with punching | ||
| Formed Material | GI | Thickness: 0.7-1.5mm, Width: 123mm 185mm(customized) |
| Decoiler | Hydraulic decoiler | Manual decoiler |
| Main body | Roller station | 14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm, | |
| Machine body frame | 350 H Beams | |
| Cutter | Automatic | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | Motor Power | 7.5KW |
| Hydraulic system power | 3KW | |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Delta (As your requirement) |
| Language | English, Spanish, etc.(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 30m/min | The speed depends on the shape of the tile and the thickness of the material. |
our customers
Product packaging
Company Advantage
• HAIXING's location is close to railways and major highways, which is conducive to the transportation of various products. And there are areas around that could be used for construction.
• HAIXING's products are mainly exported to foreign countries.
• We firmly believe that talents are the most important treasure for the company. To lay a solid foundation for our development, we actively gather resources from all parties, to form an experienced and skilled production team with dedication.
We are responsible for the production of high-quality products, please contact us to order if in need.
HAIXING
