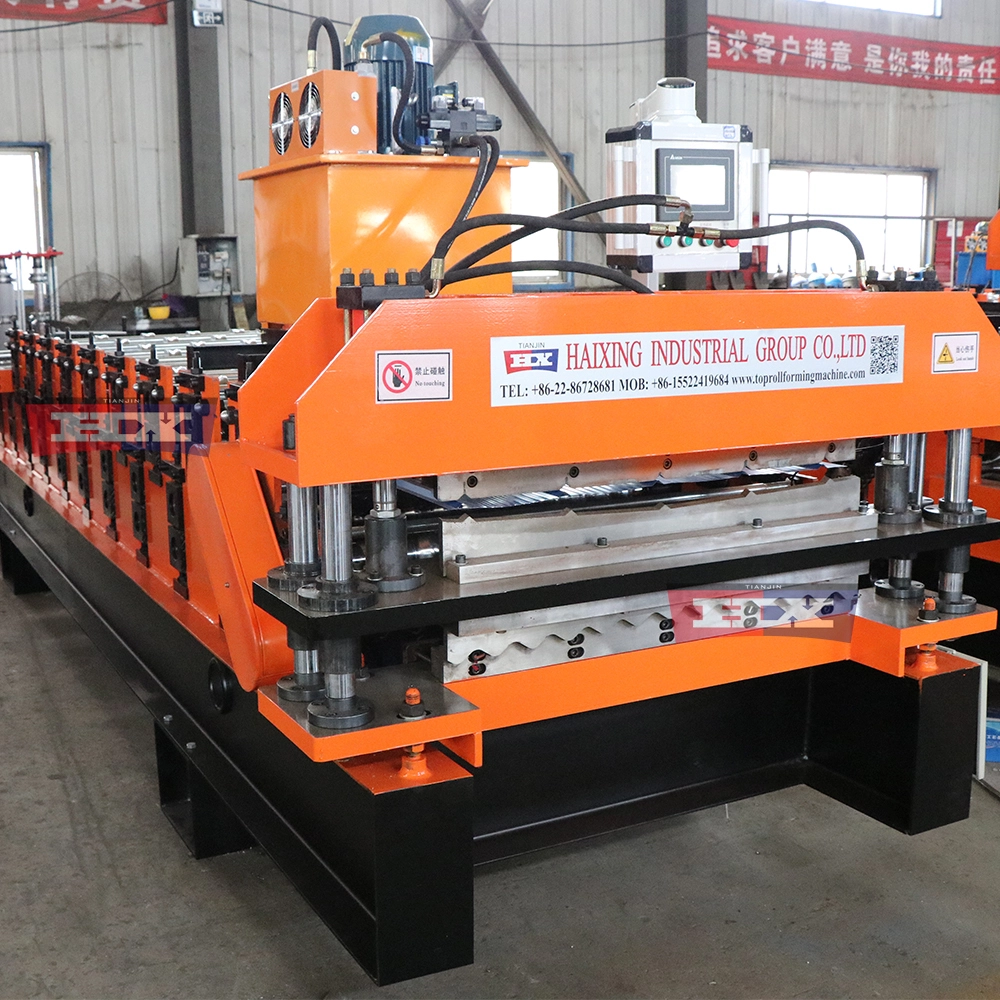

5v corrugated double layer roof roll forming machine
ibr roofing tile sheet making machinery
Product Type: Double layer roll forming machine
Formed Material: GI/GL, PPGI/PPGL
Material Thickness: 0.3-0.8mm
Material Width: 940mm(customized)
Voltage: 380V 50Hz 3Phase
Forming Speed: 10-15m/min
Decoiler: Manual decoiler (will give you as free)
Contact us for more detailed product catalog and parameter information!!!
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| 5v corrugated double layer roll forming machine | ||
| Formed Material | GI/GL, PPGI/PPGL | Thickness: 0.3-0.8mm, Width: 940mm(customized) |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| Main body | Roller station | 5v: 9 rows/corrugated: 13 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm, | |
| Machine body frame | 350 H Beams | |
| Dimension(L*W*H) | 6000 * 1550 * 1600mm (customize) | |
| Weight | 5 Ton | |
| Cutter | Automatic | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | Motor Power | 5.5KW |
| Hydraulic system power | 4KW | |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Delta (As your requirement) |
| Language | English, Spanish, etc.(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 10-15m/min | The speed depends on the shape of the tile and the thickness of the material. |
