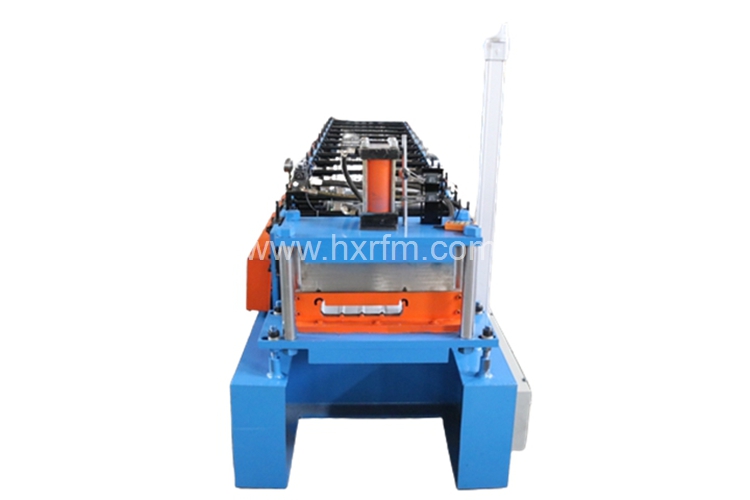

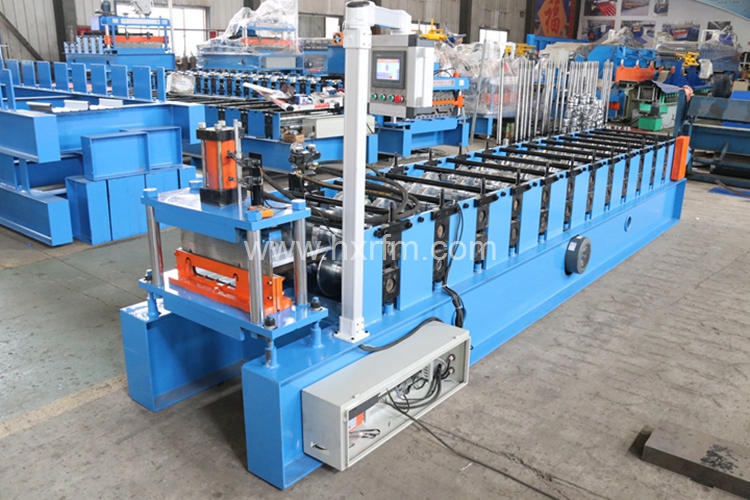

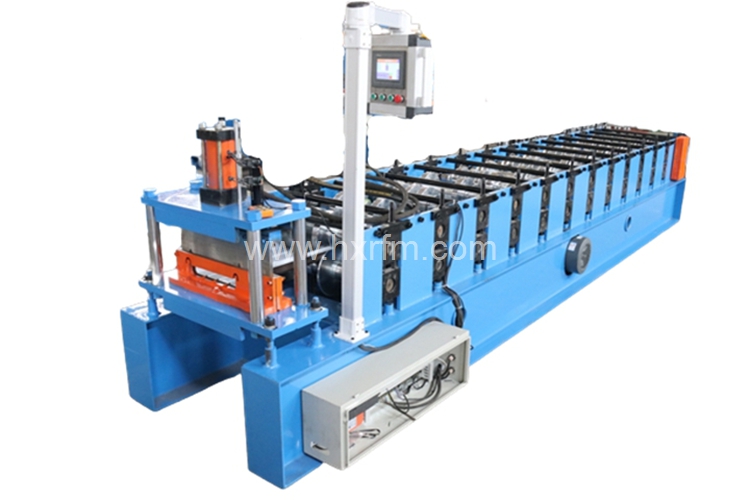

standing seam metal roofing roll forming machine
Dimensions: 4*0.95*1.8m
Voltage: 380V
Productivity: 10-13m/min
Weight: 2.5 ton
Warranty: 2 years
Feeding width:610mm
Thickness: 0.3-0.8mm
Control system: PLC(imported Brand)
Cutting blade material: Cr 12 Steel
Shaft material: 45# Steel
Suitable to process: Galvanized coils
Product description

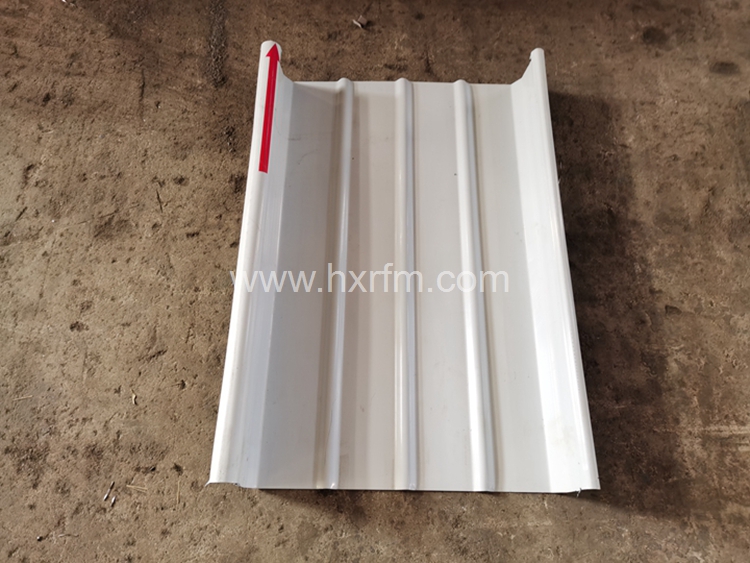

Our Standing Seam Metal Roofing Roll Forming Machine is specially designed to produce concealed fix roofing panels with snap-lock or mechanical seam profiles. These panels are widely used for modern industrial, commercial, and residential roofing systems due to their excellent waterproofing, wind resistance, and sleek appearance.
The machine ensures consistent panel dimensions, precise seam edges, and fast production speed — ideal for metal building contractors and roofing material manufacturers.
Raw Material: Galvanized steel (GI), Galvalume (GL), PPGI, Aluminum
Material Thickness: 0.4 – 0.8 mm
Panel Width (after forming): 300 – 610 mm (customizable)
Profile Type: Snap-lock / mechanical lock / clip-lock
Forming Stations: 10 – 20 steps
Drive System: Gear or chain drive
Forming Speed: 10 – 25 m/min
Cutting System: Hydraulic cutting (non-stop cutting optional)
Control System: PLC automatic control (Siemens / Delta / Mitsubishi optional)
Power Supply: 380V / 50Hz / 3 Phase (customizable)
