Ibr Making Machine by HAIXING

Product details of the ibr making machine

Quick Detail

HAIXING ibr making machine is precisely made by the advanced equipment. Our rigorous quality management system maintains the outstanding performance and quality of our products. HAIXING's ibr making machine has been widely used in many industries. TIANJIN HAIXING IMP.& EXP. CO., LTD has great service programme to better serve customers.

Product Information

HAIXING's ibr making machine has excellent performances by virtue of the following excellent details.

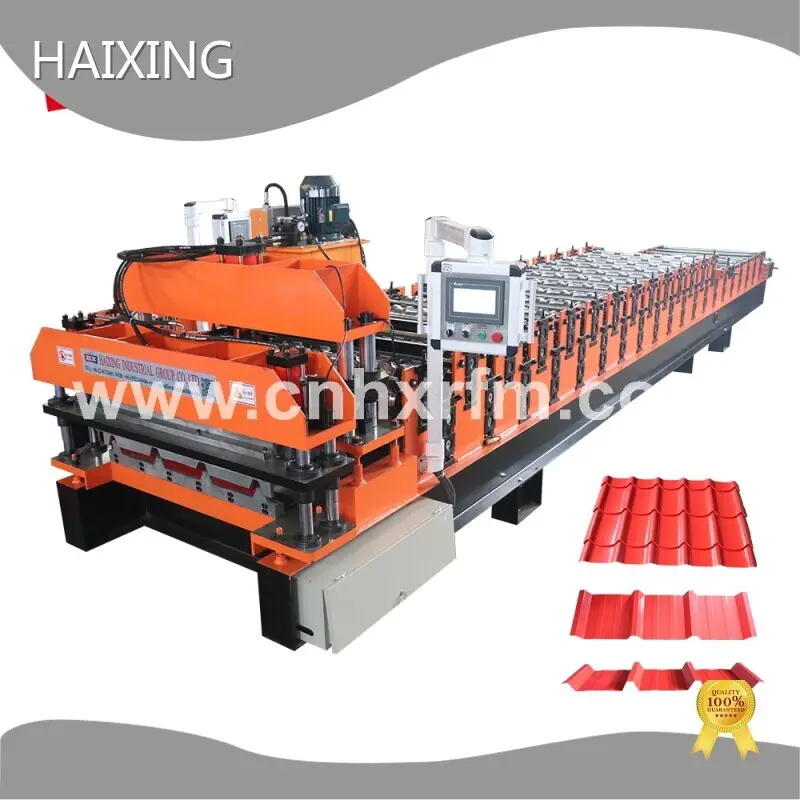

double layer roofing sheet roll forming machine
Formed Material	GI/GL, PPGI/PPGL	Thickness: 0.3-0.8mm, Width: 1220mm(customized)
Decoiler	Hydraulic  decoiler	Manual decoiler(will give you as free)
Main body	Roller station	glazed: 14 rows/pv4: 20 rows (As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, forging with chromium plate 0.05mm,
	Machine body frame	350 H Beams
	Dimension(L*W*H)	8500 * 1550 * 1600mm (customize)
	Weight	6.5 Ton
Cutter	Automatic	Cr12 Mov quenched treatment 58℃-62℃
Power	Motor Power	5.5KW
	Hydraulic system power	4KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Delta (As your requirement)
	Language	English, Spanish, etc.(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-15m/min	The speed depends on the shape of the tile and the thickness of the material.

Company Advantages

TIANJIN HAIXING IMP.& EXP. CO., LTD, situated in is a company. We are mainly engaged in the management of roof roll forming machine,light steel keel roll forming machine,purlin roll forming machine,roof ridge cap roll forming machine,floor deck roll forming machine,leveling roll forming machine,decoiler machine,shutter door roll forming machine,rain gutter and downspout machine,door frame roll forming machine. HAIXING insists on the service principle to be active, efficient and considerate. We are dedicated to providing professional and efficient services. We are responsible for the production of high-quality products, please contact us to order if in need.
