Product details of the forming machines
Product Description
HAIXING forming machines is attractive in its appearance design. Good environment of production zone and workshop is one of the conditions for improving its quality. We have the ability to supply forming machines offered by our professional producers with the help of partners.

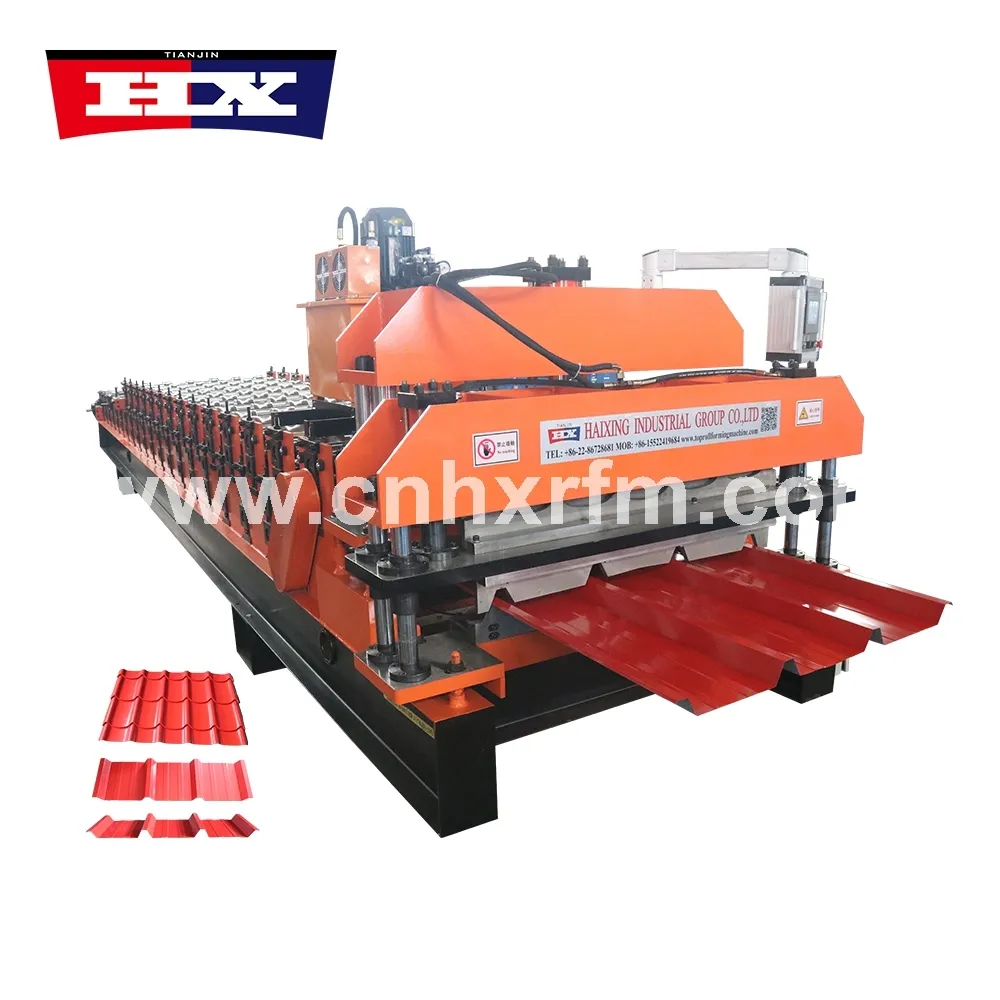

| pv4 glazed double layer roll forming machine | ||
| Formed Material | GI/GL, PPGI/PPGL | Thickness: 0.3-0.8mm, Width: 1220mm(customized) |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| Main body | Roller station | glazed: 14 rows/pv4: 20 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm, | |
| Machine body frame | 350 H Beams | |
| Dimension(L*W*H) | 8500 * 1550 * 1600mm (customize) | |
| Weight | 6.5 Ton | |
| Cutter | Automatic | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | Motor Power | 5.5KW |
| Hydraulic system power | 4KW | |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Delta (As your requirement) |
| Language | English, Spanish, etc.(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 10-15m/min | The speed depends on the shape of the tile and the thickness of the material. |
Company Advantage
• Our company has opened up a wider domestic and international market through modern media channels. It enables us to sell more products and increase our sales volume. We have been greatly increasing the market share of our products and broadening our sales area.
• Our high-quality and professional personnel are willing to provide consumers with intimate and quality services, so as to solve their problems and concerns.
• HAIXING enjoys traffic convenience due to the superior geographical conditions. We also have complete supporting facilities nearby.
• Our company has set up an efficient and practical team. Based on the pursuit for excellence, our team checks on all aspects, varying from production to sales and transportation of the products.
Thanks for visiting. HAIXING is looking forward to your consultation!
