Hydraulic Decoiler 350 H Beams 4KW 1500mm

Model:  1500mm

Weight: 2.5Tons (Include loading trolley)

Main axis:  200mm

Motor Power:   4Kw

Pump Station Motor:   4Kw ,Brand Lichao,Shanghai

Frequency Inverter:   5.5Kw,Sanjing

Cylinder type:   125 Rotating cylinder

Bottom shelf:   350 H Beams

Coil diameter:   470-530mm or customer’s need

Max put weight:  7Tons

    oops...!

    no product data.

    Go to homepage

    Product description

    Sheet metal decoiler without coil car  is powered by motor and hydraulic pump. It will save the cost for one worker.

    There is a sensor. If the coil between uncoiler and roll forming machine is tight, the sensor will let the uncoiler go forward. If the coil between is loose, the sensor will let the uncoiler stop.

    So it is more convenient and more stable.When you have a steel coil,but you need plane steel panel,you will use this hydraulic decooiler machine

    IMG_7759
    IMG_7759
    IMG_7758
    IMG_7758

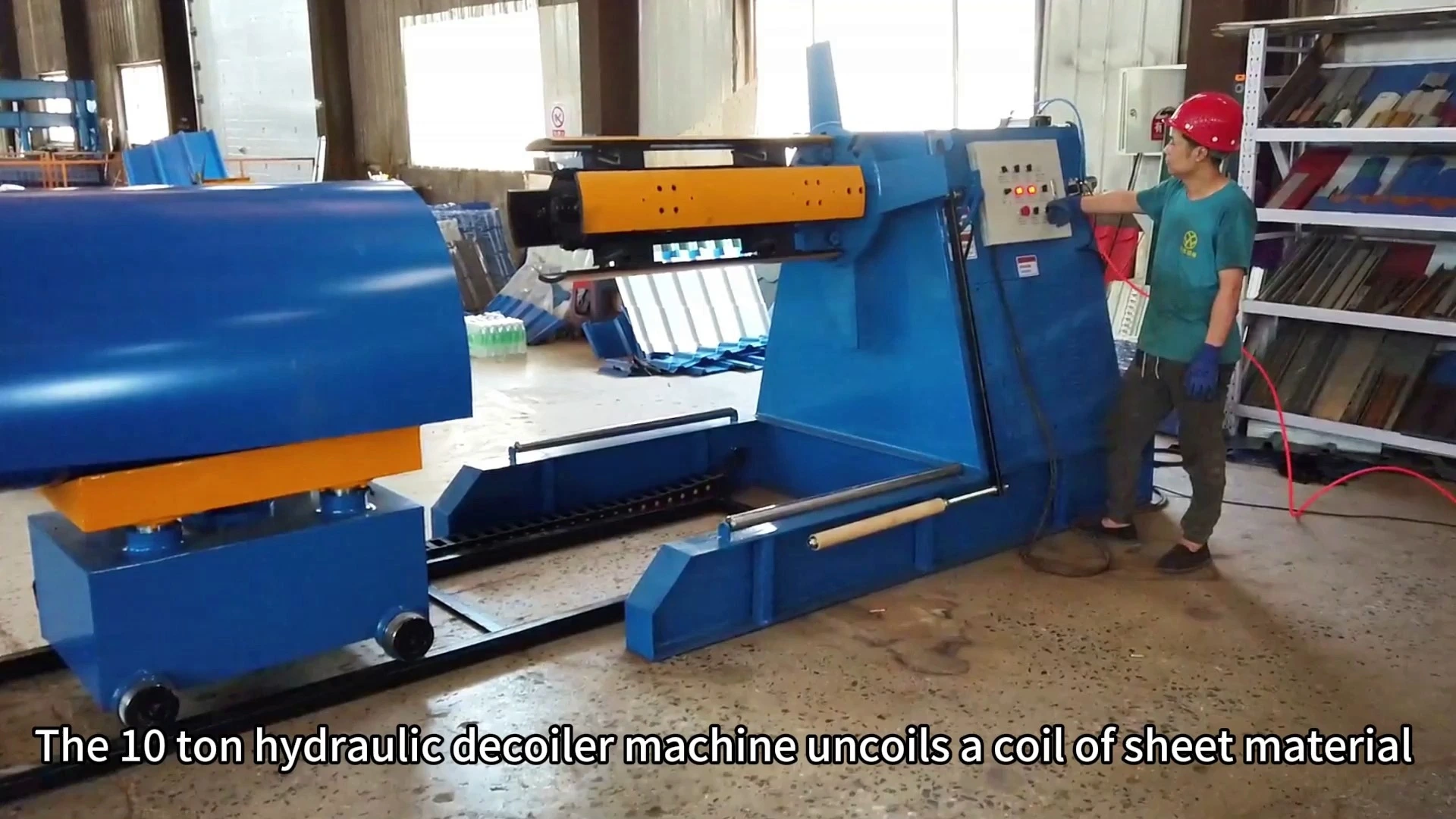

    What is 10 ton hydraulic decoiler machine advantage?

    The advantage of the 10 ton decoiler machine provided by our manufacturer and supplier is that it can be used to facilitate and speed up the coil loading process on a roll forming machine. When the decoiler is equipped with a hydraulic loading car, it can be automatically lifted to a position where it can expand and clamp the coil.


    In one preferred configuration, the coil of sheet material may be lowered onto the hydraulic coil decoiler 10 tons by looping three or four straps around the sheet material with the coil positioned with its cylindrical axis oriented vertically (one end of a given strap threaded through the hollow core 156 and the other end of that same strap directed upward along the outer surface of the coil 150).


    The coil is then guided to an approximately central position where the cylindrical axis of the coil coincides with the rotation axis B of the rotatable spindle 109. This is achieved by a set of radial members 112a and 112b selected by our factory in China whose positions are adjustable. The radial members preferably have sloped upper edges such that when the coil is positioned onto the decoiler (e.g., lowered onto the decoiler via straps held from a hoist or forklift) the sloped edges of the radial members serve to guide the coil to an approximately centered position.

    IMG_7776
    IMG_7776
    IMG_7775
    IMG_7775
    IMG_7774
    IMG_7774
    IMG_7773
    IMG_7773
    IMG_7765
    IMG_7765
    IMG_7764
    IMG_7764
    IMG_7763
    IMG_7763
