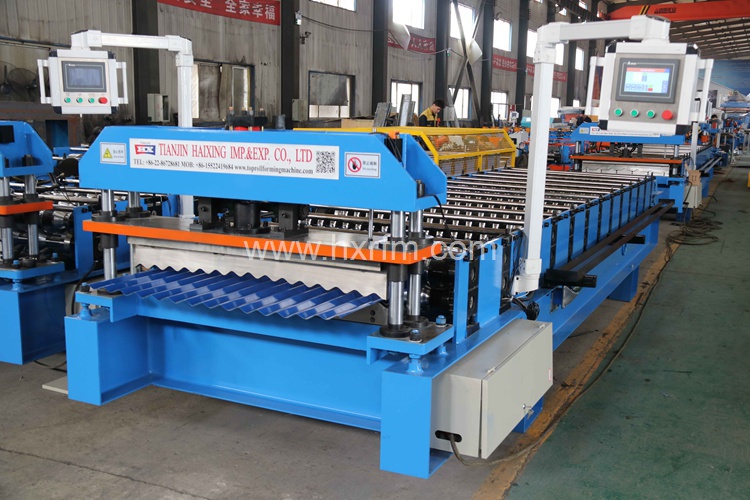

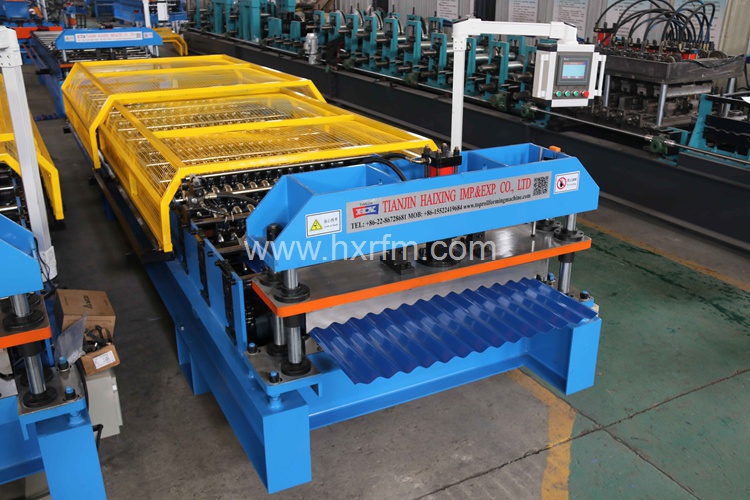

corrugated automatic roof tile machine
Dimensions: 6700*1500*1600mm
Voltage: 380V
Productivity: 8-15m/min
Weight: 6 ton
Warranty: 2 years
Rolling thinckness: 0.3-0.8mm
Feeding width: 1220mm
Thickness: 0.3-0.8mm
Control system: PLC(imported Brand)
Cutting blade material: Cr 12 Steel
Shaft material: 45# Steel
Suitable to process: Galvanized coils
Usage: Construction
Product description
Our Corrugated Automatic Roof Tile Machine is designed to produce high-quality corrugated roofing sheets with consistent wave patterns and fast production speed. The machine operates fully automatically, from coil feeding to cutting, making it ideal for high-volume production of metal roof panels.
It is suitable for processing galvanized steel, galvalume, and pre-painted steel (PPGI/PPGL), widely used in residential, industrial, and agricultural roofing applications.
Fully automatic operation for coil loading, forming, and cutting
Precision forming rollers ensure uniform wave pattern
Durable and heavy-duty construction for long machine life
Easy to operate with touch-screen HMI interfac
Supports multiple corrugated profiles and custom designs
