Automatic Upright Roll Forming Machine Manufacturer
Product Type: Upright Storage Rack Roll Forming Machine
Formed Material: GI/GL, PPGI/PPGL
Material Thickness: 1.5-2.5 mm
Material Width: 600-900mm(customized)
Voltage: 380V 50Hz 3Phase
Forming Speed: 6-8m/min
Decoiler: Manual decoiler (will give you as free)
Roofing ridge machine
Product Description
For over 28 years, we have been at the forefront of manufacturing excellence, engineering robust solutions for the material handling and storage industry. A cornerstone of our expertise lies in the design and production of high-performance upright roll forming machines. These specialized workhorses are engineered for one critical task: the efficient, precise, and continuous production of the galvanized steel uprights that form the essential vertical framework of pallet racking, shelving systems, and warehouse storage solutions.
Product Specifications
| Formed Material | GI/GL, PPGI/PPGL | Board height: 600-900 mm，Feeding thickness：1.5-2.5mm(customized) |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| Main body | Roller station | 18 rows (As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm, | |
| Machine body frame | 350 H Beams | |
| Cutter | Automatic | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | Motor Power | 18.5 KW |
| Hydraulic system power | 5.5KW | |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Delta (As your requirement) |
| Language | English, Spanish, etc.(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 6-8m/min | The speed depends on the shape of the tile and the thickness of the material. |
Product Details

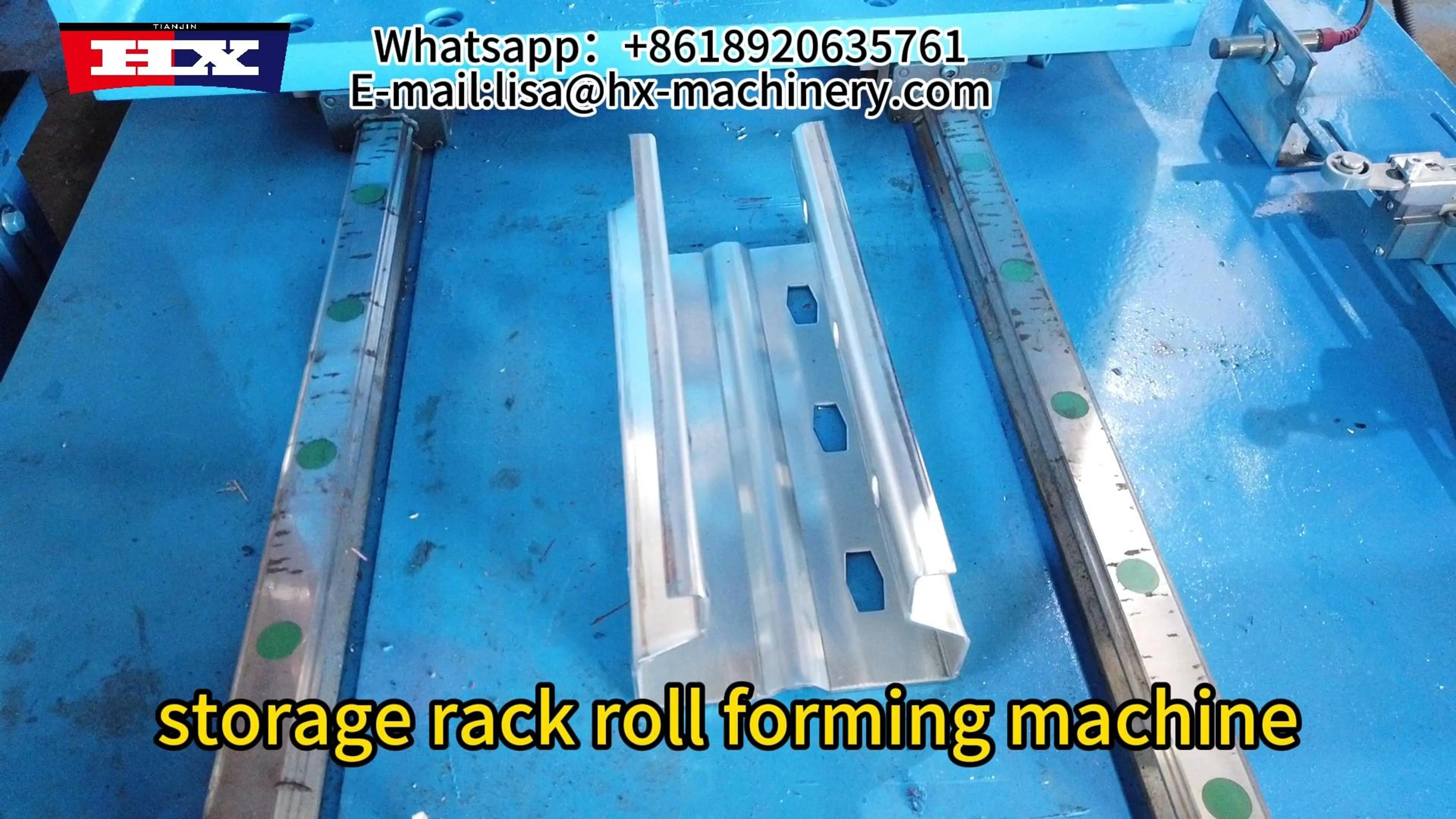

A rack upright roll forming machine is a fully integrated, automated production system. It transforms raw steel coil into finished rack upright profiles ready for assembly. Engineered for durability and high throughput, these machines handle various steel grades and thicknesses commonly used in the racking industry (typically light gauge steel). The core strength lies in its synchronized components working seamlessly: the uncoiler feeds the material, the precision leveler ensures perfect flatness, dedicated punching stations create the intricate hole patterns essential for shelf beam connections and adjustability, the multi-stage forming section gradually shapes the flat strip into the complex upright profile, and finally, a hydraulic cut system and stacker deliver finished, cut-to-length uprights.
Our Factory
We are Tianjin Haixing is a professional cold roll forming machine manufacturer.We have been focusing on this field more than 28 years.
Our equipments include R72/R101,galvateja-ternium roof roll forming machine,losacero/floor deck roll forming machine,automatic decoiler,shutter door roll forming machine,light keel roll forming machine,purlin machine,gutter roll forming machine,leveling and sliting machine,and other related construction equipment.
Looking forward to more cooperation with new and old friends .We will do our best support you !
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 28 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
A: 25 days after deposit receipt your payment
Q: Installation and training
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the
Transportation and accommodation expenses.
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purlin Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.
